Here are some basic off road lighting diagrams that should help you in your lighting project. With our wiring harness all you need to do is cut the wire coming from the switch to the 30 prong on the relay and wire it to your high beam lead or your backup light wire.
147 Bar Offroad Lights Wiring Diagram Wiring Library
Off road light wiring diagram. For example you could splice a wire off your high beam wire or off your backup light wire 86 connect to a ground. Seal the wiring in the grommet once light is finished. Without this current no magnetic force is created so the 30 to 87 switch stays open and your lights stay off. The line you spliced off your high beam wire or your backup light wire. If the new led work light or off road light bar has an atp or dt connector that you wish to utilize the corresponding atp atp mpt or dt dt mpt pigtails are available. Most aftermarket off road lights come with a wiring harness that actually includes two correlating circuits.

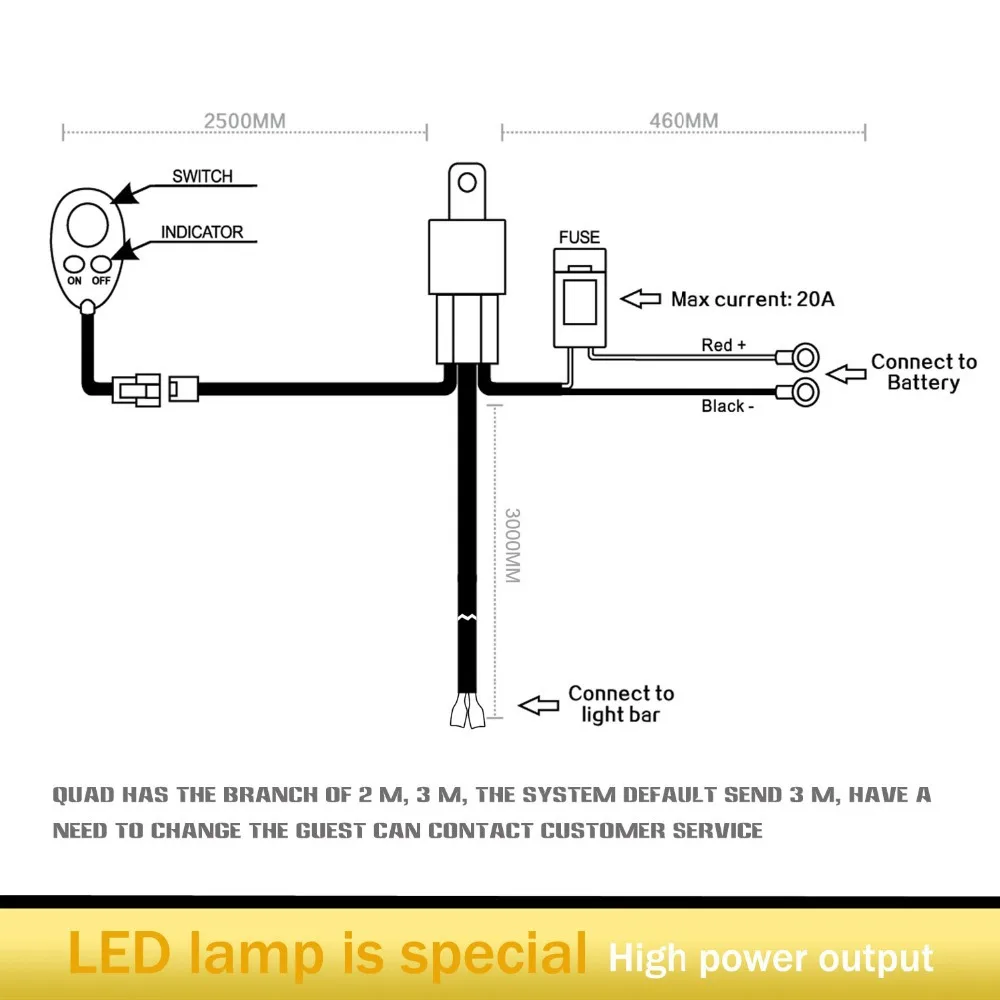

Connect the power wire of the new light to the power wire of the old light with solder and heat shrink tubing or perma seal butt connectors. As in the diagram a wire is run from a 12 volt power source to the switch in the cab and out to the relay placing a fuse at the source of the power. If not with. Figure 1 shows a typical off road lighting setup. The method i use for wiring the lights and other external accessories for the most part follows the diagram pictured above. If the wiring is going through the body install a grommet in the wiring hole.
85 connects to the power source that you want controlling the switch. In this case you need to wire the dash switch in between the trigger current ie. Cyclone leds minute masters cyclone install on f 150 daytime 6313 quad beam instructions for gm vehicles 2000 2002 6315 wiring harness with relays for 2 lights and a switch. The power relay is used to switch the current that lights up the headlights. 85 and 86 can be reversed. Even though the process may seem as easy as 1 2 3 its important to pay attention to the specific gauge or amperage numbers determined for your specific vehicle and electrical load.
One is high amperage and goes from the battery through a fuse to a relay to the. General wiring diagram on how to wire 4 lights on 1 switch. White wire instructions details. Gravity led g4 jeep jk fog light installation. That way when. Put the wires through the grommet.
Once you understand the basic diagram you can easily make a change or two to suit your needs. Off road light installation installing off road lights can be a simple straightforward task as long as you closely follow the instructions. Install the wiring for your offroad lights. This prevents the wires from rubbing through and grounding out. Part 3 of 3.
