This simple yet effective alarm system is an absolute necessity for all disabled toilet facilities. It should be noted that the exact position of the devices shown can be varied to suit a particular application provided that the recom.
What Is A Flow Switch Or Water Flow Detector In A Fire

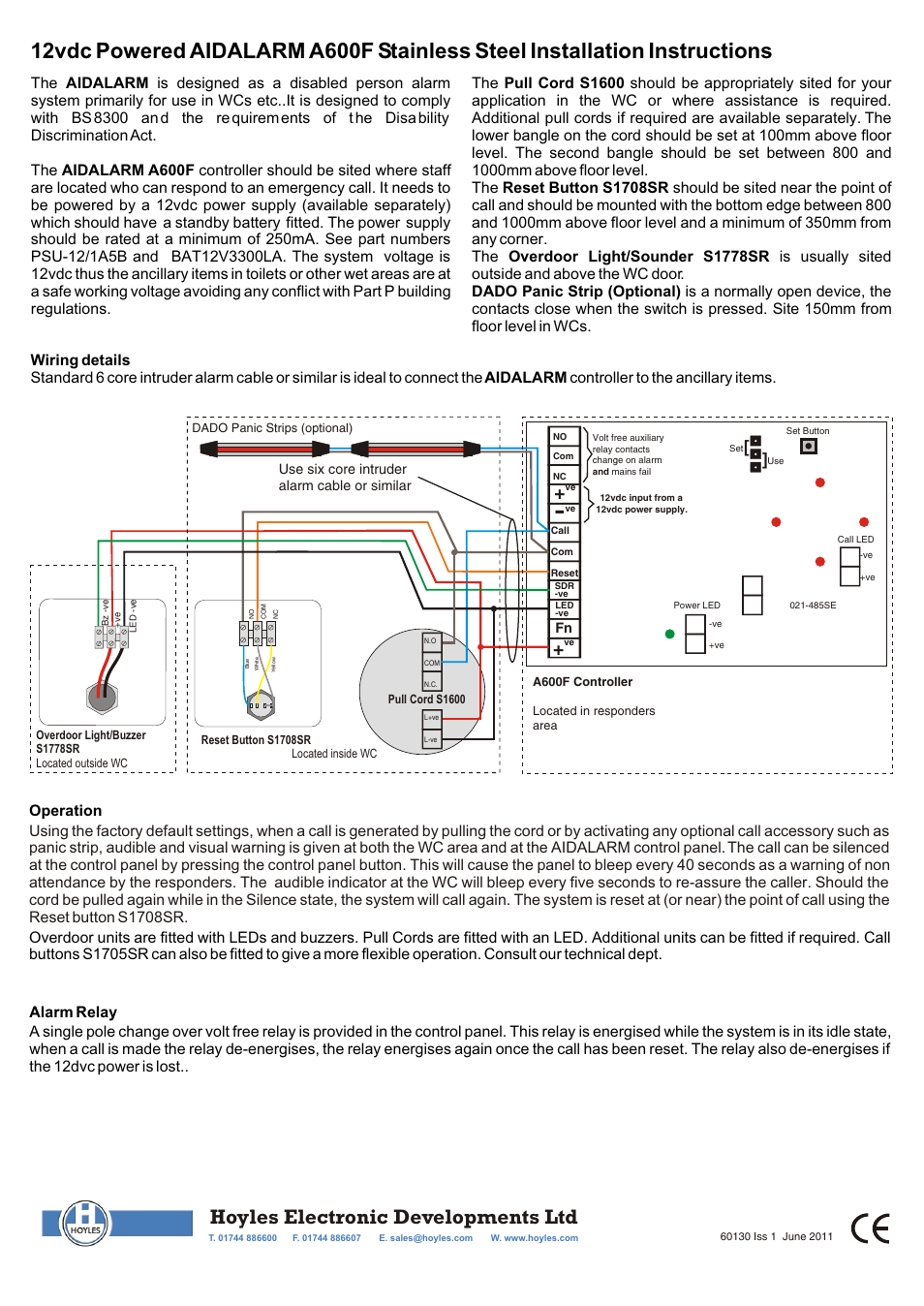

Disabled toilet alarm wiring diagram. Controller combined power supply and controller with reset button audible alarm large diameter led. Disabled toilets to be fi tted with an emergency toilet alarm. Wiring to the controller must be carefully planned before installation. The uks market leading disabled persons toilet alarm kit from c tec includes everything required for a bs8300 clause compliant accessible toilet alarm. This disabled wc alarm kit provides a compliant reliable and easy to use disabled persons toilet alarm which contains the following devices. To operate the user simply pulls the cord of a ceiling pull unit to activate a light and sounder outside the calling room.
Ideal for use in all types of disabled personsaccessible toilet applications the nc951 can also be used as a single zone emergency assistance alarm in changing rooms. Here we have put together an information page to help you with room layouts measurements and more. Available in kit solutions fi nished in white or stainless steel to fi t discreetly into any decor or environment. Raise an alarm in the event of an emergency. The diagram below shows a typical layout for a good practice disabled persons toilet alarm system based on the recommendations of bs8300. The unit benefi ts from a reassuring audible sound from within the reset unit which confi rms that assistance is on the way in addition the unit has braille text.
Disabled wc installations are fitted with an emergency assistance alarm. Connection details operation once the pull cords are activated the reassurance led on the pull cord will illuminate the reset unit will illuminate operate. This disabled wc alarm kit provides a compliant reliable and easy to use disabled persons toilet alarm which contains the following devices. And connection diagrams simple and quick to install ensures correct installation and operation low voltage cable for all component part interconnections only small csa cable required selv safe extra low voltage this simple yet effective alarm system is an absolute necessity for all disabled toilet facilities. Introducing our new qt951 addressable disabled persons toilet alarm kit specifically designed to meet the rising demand for true bs8300 compliant accessible wc alarm functionality on our quantec addressable call systemthis cost effective expansion kit allows people in distress to call for assistance and staff to send a confirmation signal that help is on the way. Consideration should also be given to installing this kit into toilets and bathrooms that may be used by the elderly the young or people who may have conditions where urgent assistance may be required.
Disabled persons toilet alarm kit installation installation of this equipment must be carried out by a competent electrician to the requirements of the current iee wiring regulations.
