Volume activepassive pp on any aguilar preamp. For single pickup eliminate blend pot wire pickup directly to volume pot.
Aguilar Obp 3 Wiring Adding A Tone That Works Over Active

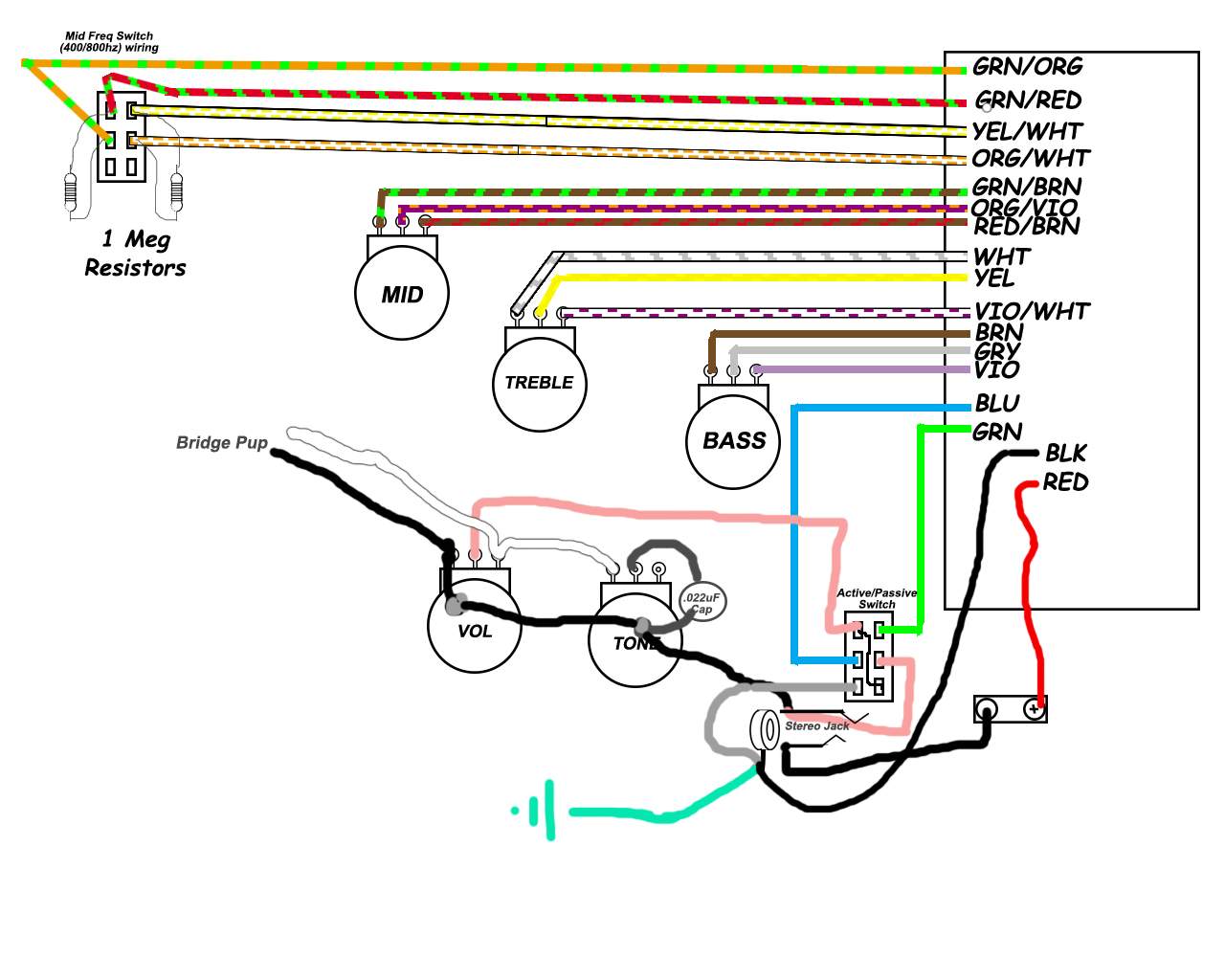

Aguilar obp 2 wiring diagram. Consulting them for our aguilar obp 2 we see the configuration for wiring the treble control is from left to right. With 18db of bass boost and cut at 40hz and 16db of treble boost and cut at 65 khz you have can emphasize just the right frequencies to make. The obp 3 has multiple wiring options and can be wired with either a. Midselect switch can be a stand alone switch or part of the push pull potentiometer. Wiring those to the three lugs closest to you on a stacked bass and treble pot will make the very top knob control the treble. Adding passive tone to the obp i module capacitor onus 200v poppropelene circuit ground wire to oap l the 250k pot passive tone control.
Be sure to check out the latest aguilar pickup offerings and the latest aguilar preamps too. For single pickup eliminate blend pot wire pickup directly to volume pot. Inserting 14 plug applies power to obp 2. Or if there is no. View and download aguilar obp 3 wiring diagram online. 3 band boostcut 9 or 18 volt on board preamp.
To wire mn 1z2z taper potentiometer swap positions of the following wires. The obp 3 is aguilars most flexible onboard preamp design providing 18db of cut and boost at 40hz 16db of cut and boost at either 400hz or 800hz and 16db of treble cut and boost at 65 khz. Wire this preamp with one 9 volt battery and it will fit into just about any instrument. For ag dcb d1 ag dcb d2 ag dcb d4 ag dcb g3 ag dcb g4 ag dcb g5. Aguilar general troubleshooting support. Use values recommended by pickup manufacturer.
Pots shown rear view. Inserting 14 plug applies power to obp 3. 2 user reviews on aguilar obp obp 3 solid state pre amp from aguilar. The obp 2 was designed to give bassists fat tone while being small enought fit into tight control cavities. Gnd 1meg 14w resistors optional they reduce switch click. Aguilar obp 3 switch pdf manual download.
Pots shown rear view. Is placed ahead of the exisbng wiring obp i module connect all wres from the 03p1 module as per the wring gram 250k audio pot bottom to output jack green wire if you desire. For cons there is a errreur in the wiring diagram at the stereo i rectified by. Value depends on pickups. Wiring is the same in both cases. Volume jumper and gnd.
For single pickup eliminate blend pot wire pickup directly to volume pot. For ag 4ss d1 ag 5ss d2 ag 6ss d4.
