Remember that the values of the two pots are fixed so you cant experiment with them. Click diagram image to openview full size version.
Guitar Potentiometers Capacitors Ironstone Electric Guitar

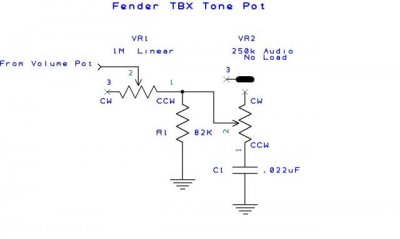

Tbx tone control wiring diagram. I dont normally screw up guitar control wiring jobs and if i remember rightly i double checked it when i was initially not impressed. Guitar wiring diagram with three single coils 5 way lever switch one standard tone for the neck pickup and one fender tbx tone control that controls the middle and bridge pickups. Ready to get started. Guitar wiring diagram with three single coils 5 way lever switch one standard tone for the neck pickup and one fender tbx tone control that controls the middle and bridge pickups. Wiring diagram for the modified tbx tone control and heres the wiring diagram of how it wires up. The red wire is the input for the tbx control and the green wire is a short jumper wire connecting pot a to pot b.
Click diagram image to openview full size version. There are more mods you can do to the tbx tone control such as using a second capacitor instead of a resistor to rewire the tbx control for more bass cut or wiring the second end of the resistor connected to pot a to the same lug as the capacitor on pot b instead of connecting it to ground for a more even and natural effect in passive guitars. The tbx control can be wired as a substitute for any normal tone control for any pickup as well as a master tone control for all pickups. The diagram shows you how to wire the tbx tone control on your strat. Ive added a 1 meg resistor across the tone cap to reduce the popping sound that frequently occurs when going to or from the no load center position. The red wire is the input for the tbx control and the green wire is a short jumper wire connecting pot a to pot b.
Wiring diagram for the modified tbx tone control. Click diagram image to openview full size version. Typical fender american standard stratocaster wiring. Modified tbx tone control phostenix wiring diagrams. Modified tbx tone control wiring. Strat wiring diagram with three single coils 5 way lever switch 1 volume 1 tbx tone control and the eric clapton mid boost circuit with mid boost control.
I guess ill have to check the circuit diagram and the wiring and the pot to see if i screwed it up. Traditional wiring for the eric clapton signature stratocaster as well as other models that use the fender mid boost circuit. Guitar amp cool guitar guitar pickups cigar box guitar guitar building guitar parts fender guitars guitar pedals guitar design. The diagram shows you how to wire the tbx tone control on your strat. A cool 2 band tone control. Or maybe im just not listening for the right thing.
Typical fender american standard stratocaster wiring. Wiring diagram for the modified tbx tone control.
