The rwb29 electronic programmer is designed to provide individual control of domestic central heating systems and hot water systems. Res 101 june 2006.
Product Interchange And Wiring Guide Electrika Product

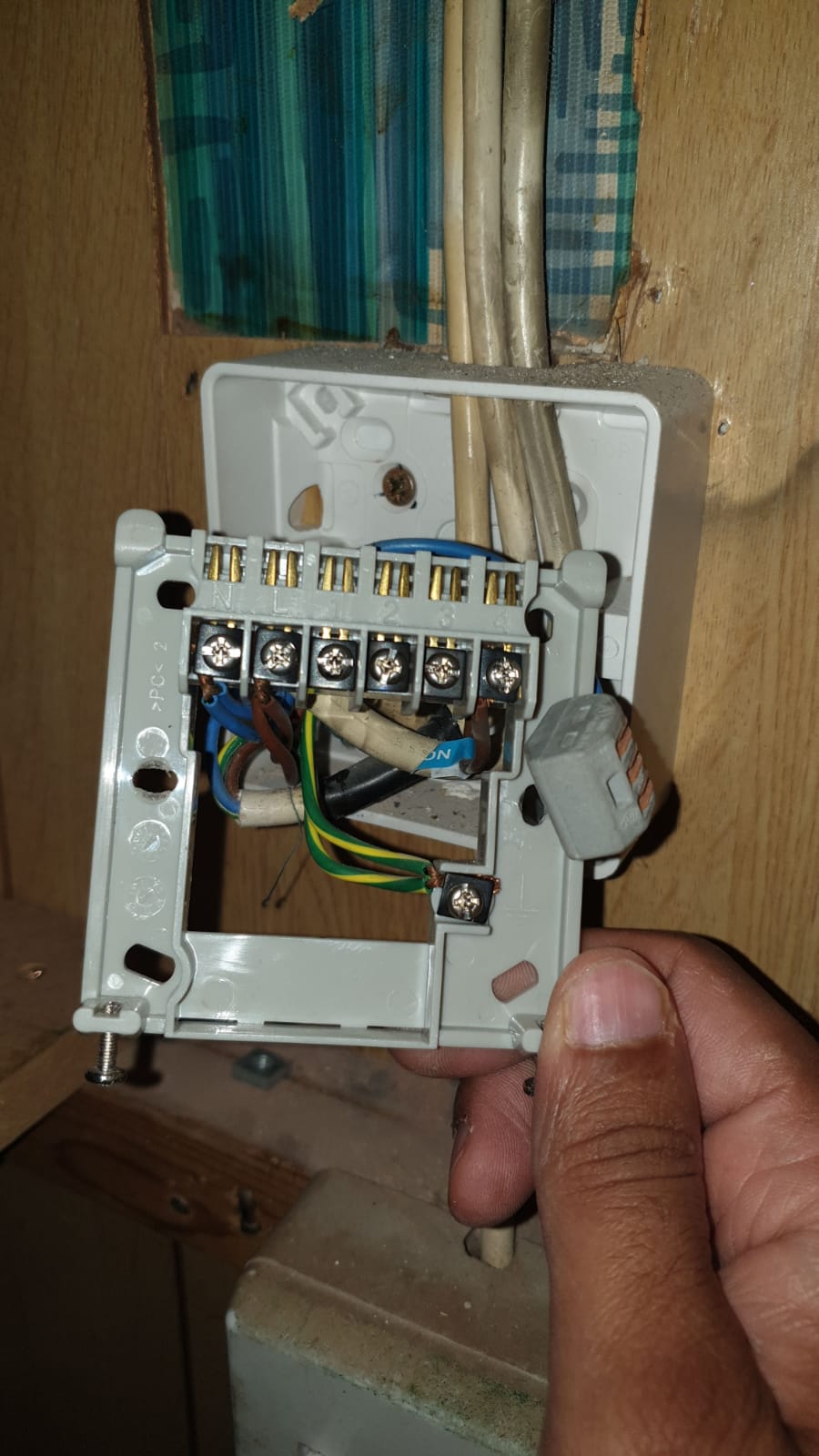

Siemens rwb29 wiring diagram. In conjunction with the appropriate thermostats room cylinder and motorised valves it can be used in most types of domestic heating installations to provide time temperature control. The attached wiring diagram shows how it is at the moment. The rwb29 is supplied with the industry standard backplate to which the system must be wired. Siemens rwb29 e n l 1 2 34 rwb2e e n l 1 2 3 4. The backplate can be fitted directly to the wall or onto a conduit box. Rwb29 internal wiring diagram for more information see enclosed separate wiring and.
English as an attachment in your email. Only conduit boxes which comply with bs1363 or bs4662 single gang should be used. This official sponsor may provide discounts for members. The programmer is a siemens rwb29 on a mid position fully pumped system. Rwb29 internal wiring diagram for more inf ormation see enclosed separate wiring and inter change sheet note. Jan 30 2019 2.
The manual is 063 mb in size. Enter your email address to receive the manual of siemens rwb29 programmer in the language languages. Rwb29 to the backplat e if the rwb29 is replacing another landis gyr or landis staefa pr oduct as listed below no wiring changes ar e required rwb1 rwb2 rwb20 rwb40 rwb200 rwb200cw rwb252 rwb252cw. Your help and advice would be much appreciated.
