Just a small strip of platinum that measures 100 ω or 1000 ω exactly at 0 c. Rtd wiring configurations there are three types of wire configurations 2 wire 3 wire and 4 wire that are commonly used in rtd sensing circuits.
Us 3 78 Ftt01 4 20ma Output 50 200c Pt100 Temperature Transmitter Module Sbwz Temperature Amplifier Templifier Pt100 Transmitter Pt100
Pt100 wiring diagram. Both options 34 wire connection or increasing the cross section lead to a higher cost in the cabling which can be problematic especially in cost sensitive markets such as machine building. 2 wire rtd connections the 2 wire rtd configuration is the simplest among rtd circuit designs. A wiring diagram is a streamlined standard photographic depiction of an electrical circuit. It is called a pt100 because at 0 deg c it will measure 100 ohms. It shows the components of the circuit as simplified shapes and the faculty and signal friends amongst the devices. Rtds are really very simple devices.
With a cross section of 05 mm 2 the line resistance is only 0036 ωm or 01 cm. A pt100 normally has 3 wires. It is in simple terms a resistance that changes with temperature. A wiring diagram is a straightforward visual representation of the physical connections and physical layout of your electrical system or circuit. Because a very small change in resistance happens with each degree in temperature the. A 2 wire configuration with a compensating loop is also an option.
Assortment of rtd pt100 3 wire wiring diagram. It shows the components of the circuit as streamlined shapes and also the power and also signal links between the gadgets. A1b1 a2b2 and c1c2. Rtd sensors most common pt100. Rtd pt100 3 wire wiring diagram what is a wiring diagram. It is very important that each of the three wires used in the measuring circuit are equal in terms of both conductor size and length.
A further possibility to substantially decrease the influence of the cabling is to increase the conductor cross section. Well explain the 4 wire version since thats the most complex. Bonded to the pt100pt1000 are 2 3 or 4 wires. Where do those wires go pt100 1. Rtd wiring config. It shows how a electrical wires are interconnected which enable it to also show where fixtures and components may be coupled to the system.

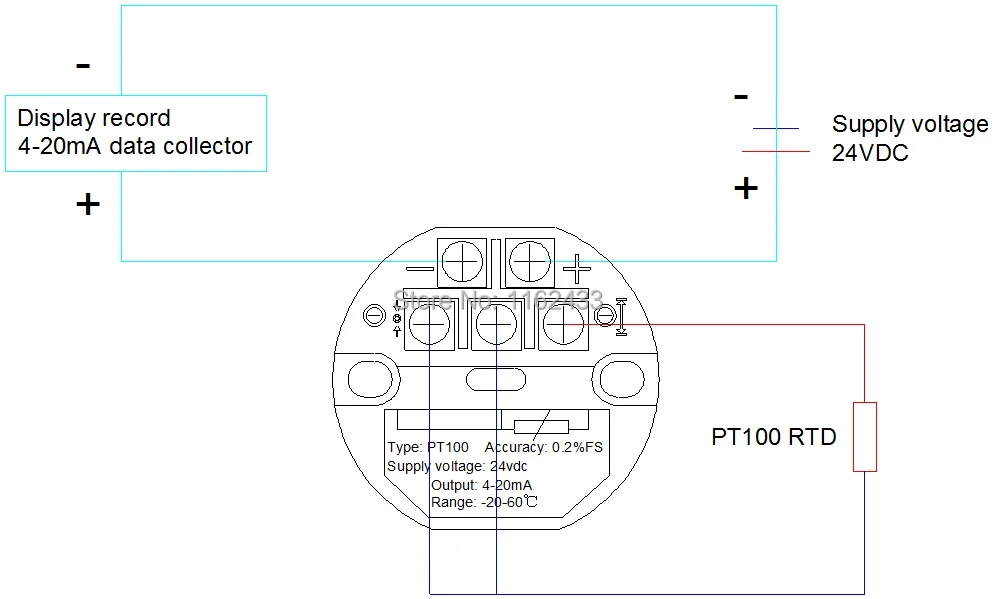

Wiring there are 2 wiring methods for the rtd module and pt100 temperature sensors two wire and three wire connections. Normally if you want to measure a resistor you just connect your. 3 wire pt100 rtd sensor wiring system. At ambient it will be around 138 ohms. When wiring with two wires first jumper across a1 and b1and a2 and b2 respectively then connect pt100 sensors and to the rtd module according to the following diagram on the left. Resistance temperature device linear resistance change with temperature positive temperature coefficient wire wound or thick film metal resistor over limited temperature range.
Pt100 temperature sensor wiring diagram. 3 wire pt100 wiring diagram wiring diagram is a simplified agreeable pictorial representation of an electrical circuit. The addition of a third wire connected to one side of the measuring element helps to compensate for the lead resistance.
