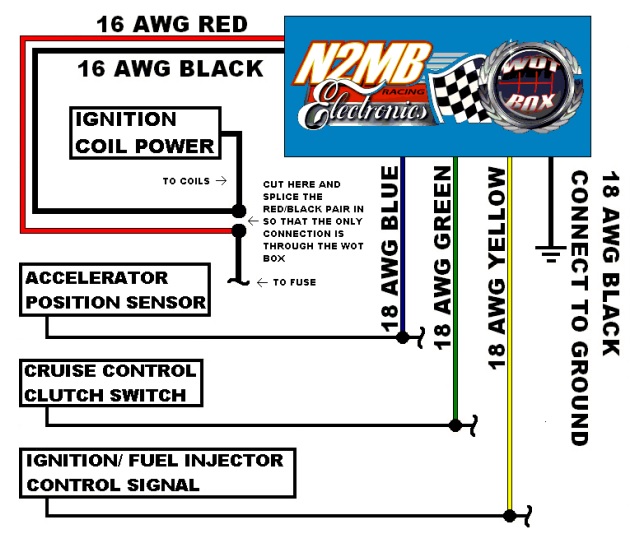

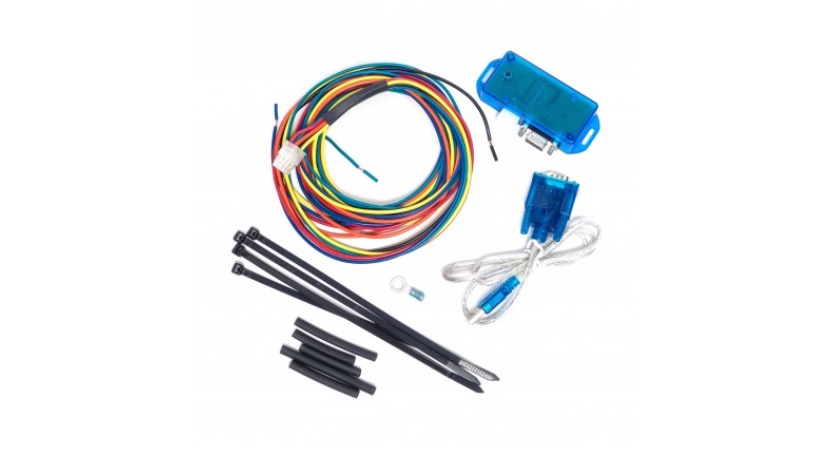

N2mb wot box wiring diagram. The ignition cut allows the synchros in your transmission to mesh easily reducing the chance of missing a gear and damaging your transmission. Wot box installation instructions harness revision as of 32414. The instructions will be updated to reflect this change. Whenever the black of the red black pair is mentioned use the orange wire. The instructions will be updated to reflect this change. The wot box makes no lift shifting easy by cutting your engines ignition for a very short period while you no lift shift.
If your harness is equipped with an orange wire it will replace the 16 gauge black wire of the red black paired wires in the instructions below. Similarly a dual feature wot box can be converted into a boost box by loading the boost box software. It allows the synchros in your transmission to mesh easily reducing the chance of missing a gear and damaging your transmission. 13 locate a harness passthrough on 12 locate a good chassis. If your harness is equipped with an orange wire it will replace the 16 gauge black wire of the red black paired wires in the instructions below. Page 6 11 route the green wot box wire to 11 this location using zipties to secure along the way and splice the green wot box wire into the pin1 bottom pin towards rear of vehicle light green wire making sure that the original connectivity of the wire is maintained.
Whenever the black of the red black pair is mentioned use the orange wire. No lift shifting is keeping the gas down through the shift. The wot box is an electronic device that makes wot shifting easy by reducing your engines power for a very short timed period while you shift. Just load our wot box software onto your boost box and it can become a wot box. Wot box installation instructions harness revision as of 32414.
