The hot and neutral terminals on each fixture are spliced with a pigtail to the circuit wires which then continue on to the next light. If a metal switch is used an extra piece of wire must be connected from the earth terminal block to.
Wiring Lights Up In Parallel Diynot Forums
Loft light wiring diagram. Connect the attic light to its own circuit. Wiring method for a loft or garage light with all connections behind the switch. This site is merely. The source is at sw1 and 2 wire cable runs from there to the fixtures. You will then need to run this new 25mm cable to a 5amp fused connection unit or fcu for short. Wiring a single pole light switch.
To do it you will need to insert a junction box as described in wiring up a loft light using a junction box section above only this time you will need to use 25mm cable to match the existing socket circuit. Make sure the light is securely in place by using your hands to see if it is still loose. This light switch wiring diagram page will help you to master one of the most basic do it yourself projects around your house. I do a lot of wiring of lighting in bathrooms and low and behold 95 of the time the loft light is wired off the lighting circuit which is a pain wahreo mar 28 2016 mar 28 2016 at 337 pm. Connect the electrical wire from the switch box to the attic light using the manufacturers instructions. Hey doing it yourself is great but if you are unsure of the advice given or the methods in which to job is done dont do it.

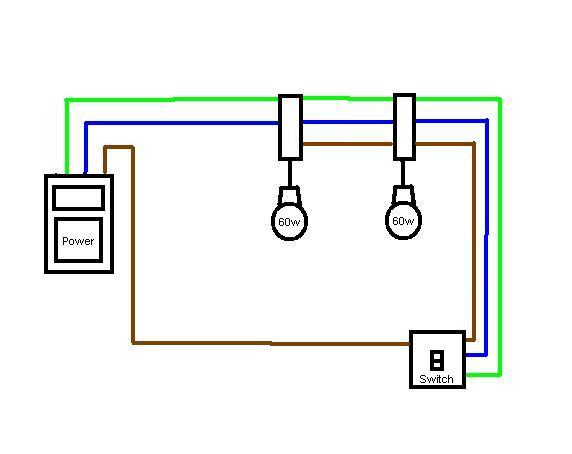

This arrangement is often used in locations such as garages and lofts where only a single light is required. When you put the breaker back on. Multiple light wiring diagram this diagram illustrates wiring for one switch to control 2 or more lights. The diagrams above are for a plastic switch. Cut all power by switching off the breaker box.
