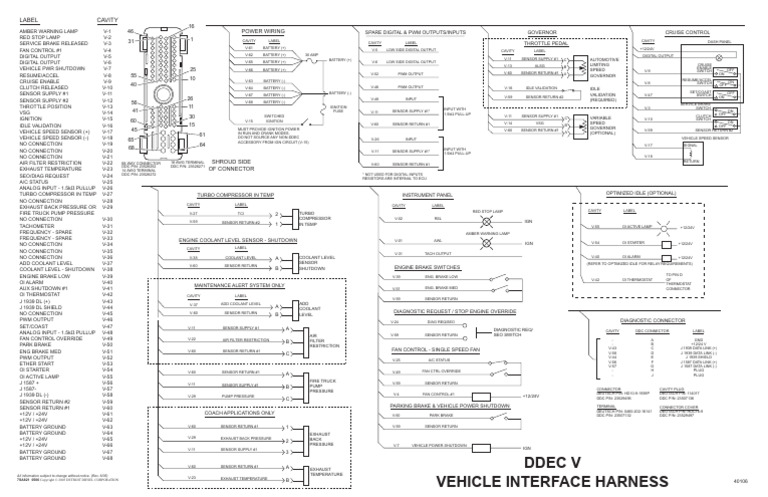

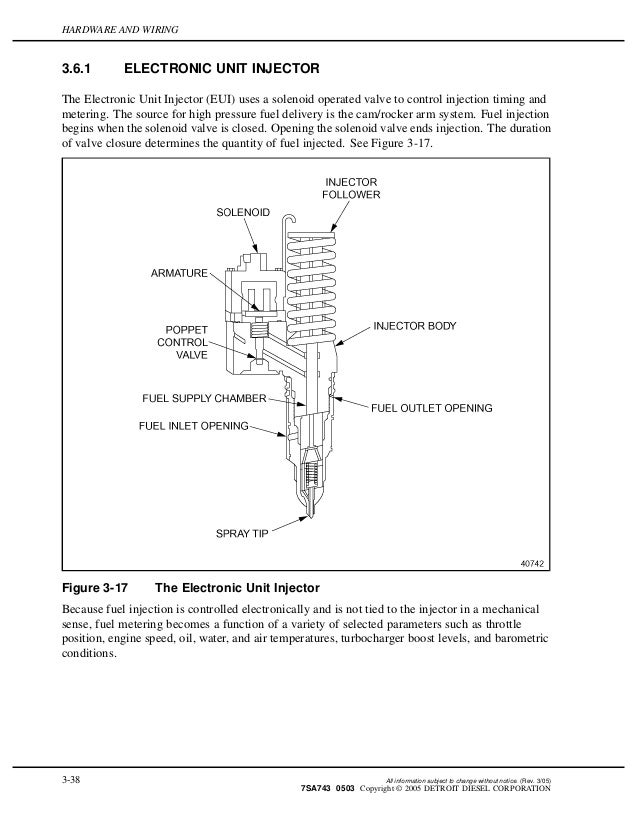

Ddec v wiring diagram. Ddec v wiring diagram series 60 ddec v egr engine harness ddc responsibility pin no. Ddec v application and installation manual connector shrouds protect the two 68 pin tyco connectors see figure 3 3. Detroit diesel series 60 wiring diagram pdf download. We carry a variety of detroit service manuals for mbe 900 mbe 4000 series 40 50 53 60 dd13 dd15 dd16 ddec control system and more. The wiring diagrams you sent me are not the ones i was looking for. The wiring diagrams cover both the series 60 engine harness and series 60 vehicle interface harness.
The detroit diesel series 60 ddec iii iv v vi wiring diagrams are also known as electrical schematics or circuit diagrams. Ddec iv wiring schematics. Related manuals for detroit diesel 60 egr series. Does the problem occur at a specific engine operating temperature. Egr flow troubleshooting tips 80. Figure 3 3 electronic control unit with connector shrouds the shrouds are fastened to the ecu studs with lock nuts.
Wiggle wires and harnesses to try to make the problem active or re occur. The wiring diagrams cover both the series 60 engine harness and series 60 vehicle interface harness. Ddec 1 wiring diagram jake brake wiring diagram detroit 60 series wiring diagram wiring diagram for e ecm series 60 engine fan wiring. If so at a ddec v electronic control unit a1 repair or replacement of the ddec v electronic control unit the ddec v ecu is a sealed nonserviceable unit. The eh pin tyco connector pinout for the series 60 is listed in table and table air filter restriction wiring diagram. Hardware and wiring pin signal type function connector 61 pwm1 egr valve 62 pvb2 power supply 63 pwm2 nc 64 pvb2 power supply 65 pwm12 doser 66 pwm13 nc 67 pvm ground 68 sw2 nc 69 sw8 fuel cutoff valve 70 sw6 nc 71 linv nc 72 lin nc 73 dyn3m ckp 74 can3l wastegate can 75 can3h wastegate can 76 d3s nc 77 a29 supply fuel.
Ddec iv testing 53. The ddec v ecu has two pin tyco connectors one for the engine and the other for. See figure 3 4 for the ecu outline and dimensions. List of files in the detroit series 60 wiring diagram. The ddec v ecu has the same footprint as ddec ii iii and iv. Detroit diesel series 60 ecm wiring diagram inspiration ddec iii iv kenworth t wiring diagram detroitthe detroit diesel series 60 ddec iii iv v vi wiring diagrams are also known as electrical schematics or circuit diagrams.
Our detailed service manuals shop manuals troubleshooting manuals and wiring diagrams are a must for any diesel mechanic. Engine detroit diesel 60 operators manual. Engine oil pressure sensor.
