Drl controllers are designed for standalone drl and will not function properly with standalone switchback drl modules or switchback led light bulbs. In my case the lights had the wiring already connected it was insulated two core positive and negative with a pvc outer sheath.
How To Avoid Daylight Running Lights Drl When It Parked

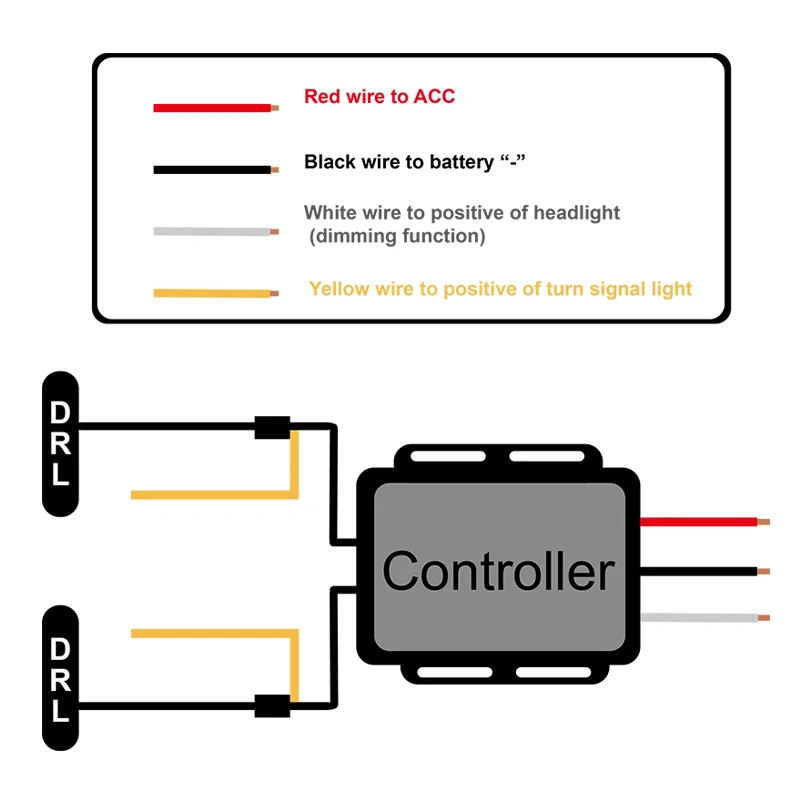

Daytime running lights wiring diagram. A number of our products include daytime running lights and below is a diagram for customers interested in wiring them up via a relay to allow them to turn off when the low beam headlights are turned on. I recently installed the webb electric drl 1 daytime running light module from daniel stern lighting on old blue my trusty 75 plymouth dusterin my opinion this kit is the best way to run drls as they work on the bright side of the front turn signalpark lights rather than the headlights meaning the bulbs you are going to. The light cables need to be run to a relay which in turn needs to be connected to both a headlight connection and a. Insert the wire into the bracket. So if you want to acquire these magnificent pics related to d21 wiring diagram. Tap led daytime running lamp to any existing 12v power source such as parking lights fog lights or headlights.
4 relay from the engine room no. Add tip ask question comment download. 3 relay and no. Clip lights into brackets and replace any panels removed including the battery cover. Tidy the wiring using the kits cable ties. Check everything is working by starting the engine.
Led daytime running lights installation. In addition any local auto electrician should be able to set this up for you if needed. The led daytime running lights can be mount anywhere in front of the car. How do i tap the wire for the led daytime running lights. Whilst mounting the lights have a think about where the wiring is going. Depending on the model the leds will automatically dim or go off when the cars own lights are used.
Adding daytime running lights to a classic car. Autoplay when autoplay is enabled a. Tap led daytime running lamp to the battery using an automatic drl on. The main body ecu controls the daytime running light no. Measure the resistance of the relays. 4 remove the no.
Inspect daytime running light relay marking.
