At the junkyard where i got the accord climate control i cut off about 10 inches of the accord harness also. This is what i have so far.
Crx Community Forum View Topic Fan Wiring Need A Little

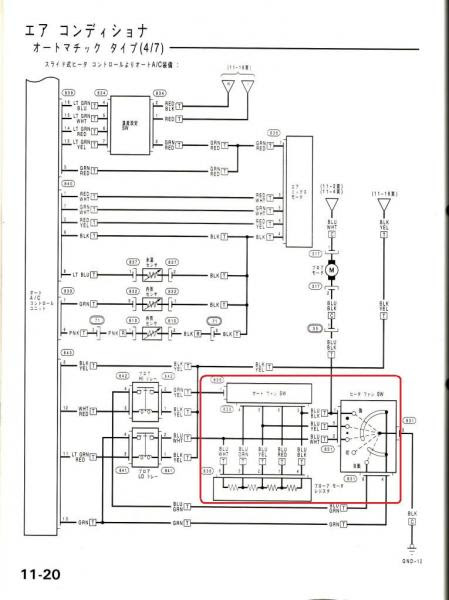

Crx climate control wiring diagram. You can control the amount of air that is released through the vents as well as the temperature. For more information please see the following page. Notes no wire in the socket of plug 3 2 1 8 7 6 5 4 this is the bigest plug with the locking tab at the top middle of the diagram. Learn how to access vehicle repair guides and diagrams through autozone rewards. A 8 pin and small green 14 pin. Its also superbly efficient and generates minimal noise.
The stock crx harness has 3 plugs. Pretty easy install and only a few tools are needed to complete this job. The accord climate control has 2 plugs. The crx has a lot of the same climate control features that you can find in other honda models. Dometic coolmatic crx 50 this smart refrigerator has a stainless steel effect front offers 45 l of cool storage including an optional 44 l of freezer space. You need a diagram telling you which wire on the rex harness the part that is wired to the car goes to vent controls which vents for what button fan controls all that stuff and do the same with the diagram for the new climate control and connect similar wires for control.
The crx connector however isnt explained at all in the honda users manual. My heater control panel lights were both burned out and i had 3 bulbs out inside the gauge cluster. These vary from a slight breeze that keeps the honda crx at its. I got the wiring diagram for the eg connector. It was annoying not. Now im really confused.
In most of these models there are four different settings that you can choose from. So heres the parts i bought from mouser. Sign up today to access the guides. A 5 pin green 6 pin white and 13 pin white all female.
