Bz 50 Relay Power Supply

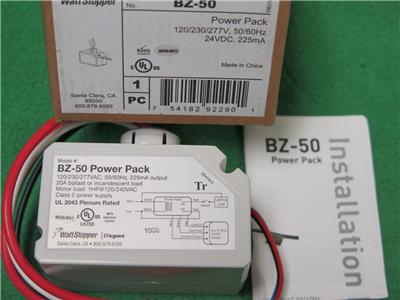

Bz 50 power pack wiring diagram. It is well suited for any application which requires high voltage switching through low voltage controls. The direct current 24 volt supply features short circuit and overcurrent. Plenum rated the bz 50 power pack is comprised of teflon coated low. The bz 50 universal voltage power pack provides 24 vdc operating voltage to wattstoppers low voltage occupancy sensors. The bz 50 power pack is attached to existing junction boxes or mounted into fixture wiring trays. Input voltage ballasta incana motorhp output 1 all wattstopper power packs should be installed in accordance with state.
All wattstopper power packs should be installed in accordance with state. The bz 150 universal voltage power pack is full featured and. 120277vac 5060hz 20a ballast or incandescent bz 50rc power pack. It has an input of 120277 vac 5060hz and an output of 24vdc 225ma. Ordering information catalog no description bz 50 power pack. It turns the connected load on and off automatically based on occupancy sensor input.
Installation diagram wiring with occupancy sensor manual on bi level switching. Installation diagram bz 50 bz 50 u bz 50 fta 120230277vac. Bz 50rc wiring to lighting load and sensor catalog color description input voltage bz 50rc white universal voltage power pack with rj45 connection 120230 1p l n 277 vac bz 50 white universal voltage power pack with flying leads 5060hz fs c1 10 3048m cable with shielded rj45 male connectors at each end. The aatt channel 8024 views. Local and national electrical codes and requirements. 120277vac 5060hz 20a ballast or incandescent with rj 45 low voltage output bz 50rc accessories fs c1 one 10 cable with a shielded rj45 male connector at each end 10 3m fs c2 one 6.
The bz 50 consists of a high efficiency switching power supply and a high current relay. Testing a bz 50 wattstopper power pack bz50 simple check out test lighting controls duration. The bz 200 power pack is flexible enough to control lighting circuits plug load circuits or hvac loads including self contained air conditioners pumps fans motors and motorized damper controls. The bz 50 supplies low voltage power to occupancy sensors and other control devices switching line voltage in response to signals from control devices. Local and national. Covid 19 update a message from john selldorff on the covid 19 virus and what lnca is doing in response.
The bz 50 is comprised of a relay with line voltage contacts and a 24 vdc power supply enclosed in a simple unit. The bz 50 power pack is the foundation for any low voltage lighting control system.
