Baystat240a wiring diagram. The baystat240a wiring diagram very good for beginner. But i do not really understand about. Active 2 months ago. Refer to wiring diagram to determine if a single pole or double pole contactor is used. Everything matches up except the w terminal also says ob below it. Up till now it worked well.
Trane baystat240 wiring diagram nest video. The wiring diagram helper will guide you which wires go to that port. This is a nice book that i am searching for. Changing trane baystat240a to another thermostat. Thank you for sharing baystat240a wiring diagram. It reveals the parts of the circuit as streamlined forms and the power and signal links between the gadgets.
Do i hook up both t read more. Thanks for sharing baystat240a wiring diagram by hermawan may 13 2012. 40 50 60 3 3 trane trane. R red wire t tan wire o orange wire g green wire y yellow wire x2 black wire b blue wire w white wire now the schematic for the lux thermostat only lists a 5 wire set up for the 2 stage heat1 stage cool where do the extra wires go. Old t stat is a trane baystat240a wired as follows. W white wire r red c black g green o orange y yellow and blue to honeywell focuspro 6000.
4 5 stars. You will require this to straighten the cable easily. If you are an expert people you can use this manual as reference. I have recently acquired a residence that had a much older hac unit. To create your job simpler prepare needle nose pliers. This website gives all information you need related to trane baystat240 wiring diagram nest.

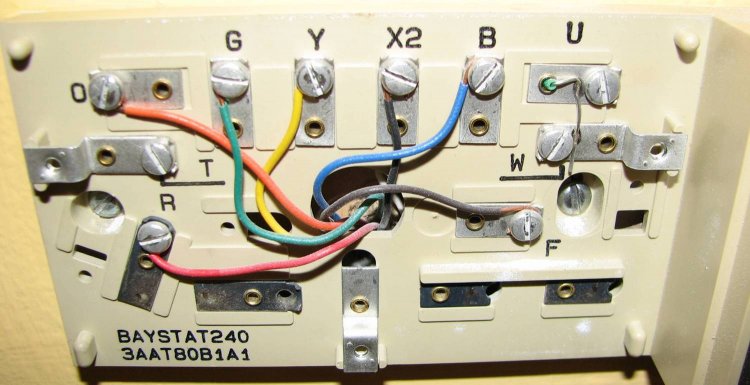

The thermostat is a trane baystat240 3aat80b1a1. R t o g y x2 b. R red wire t tan wire o orange wire g green wire y yellow wire x2 black wire b blue wire u is jumpered to w which has a white wire attached to it f isnt in use 8 wires total in old unit new t stat is a honeywell focus pro th6110d1021 options on the back of that are. My question is wiring the new thermostat the baystat240 was wired as follows. I have recently attempted to replace the thermostat with a honeywell rth3100c. 4twx6024e sf 1f 7 troubleshooting check for open iol internal overload check resistance of c to s and c to r does the resistance check show an open.
Looking at the schematics i can see that there is a common wire present but i want to make sure update if i were to go with honeywell touch wifi rth9580 would the following wiring work. Trying to change from. Recently both the heat and air were blowing at the same time. I am still missing t and f. Ask question asked 5 years 1 month ago.
