Convert your anchor light to a combination led tri color anchor light duration. The below diagram is for small boats with a redgreen combo light and a single sternlight that can also be used as an anchor light.

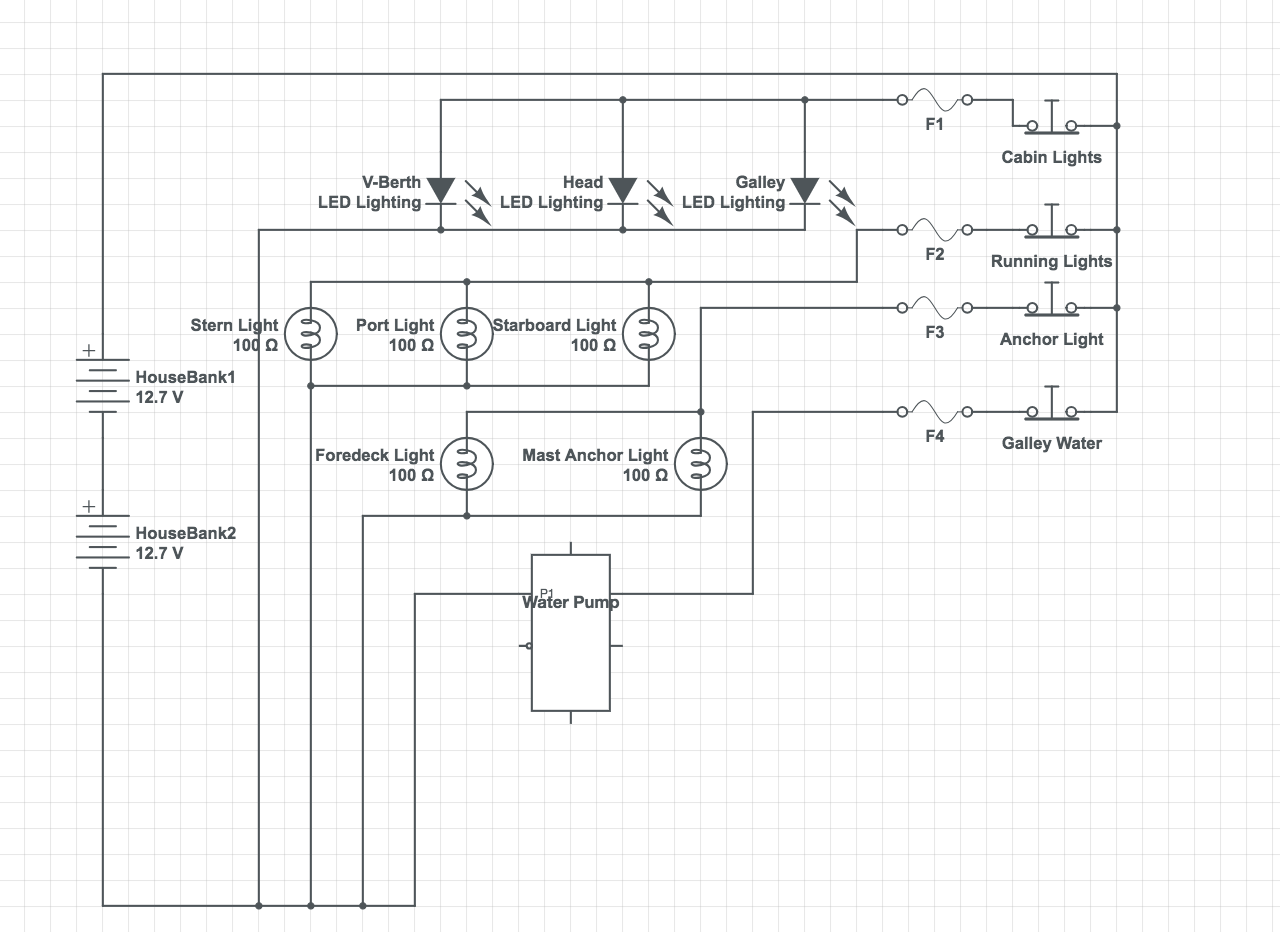

Boat Wiring Diagram 1 Png 152 22 Kib Viewed 438 Times Click
Anchor light wiring diagram. Combo bow light and sternlightanchor light and instrument lights. When the switch is in the anchor position you want only the white stern light to be on. Here are your electrical connections. In this extremely common configuration a single switch is. Super easy boat wiring and electrical diagrams step by step tutorial duration. Attach one end of the wire for the bow light to the positive terminal of the battery or a bus bar connected to the battery.
Usually these have a single swith with 3 positions. As you said when the switch is in the navigation position you want the redgreen light and the white stern light to be on. This guide provides instructions rocker switch wiring diagrams and information for multiple carling v series rocker switches with 10 terminals and two independent lights. Like the marine vhf radio the navigation lights should be on an isolated circuit. Attach the other end of that same wire to the red wire of the bow light with a waterproof wire connector. In this video wiring guide we show how to wire a 7 terminal vjd1 d66b rocker switch to operate a boats navigation and anchor lights.
From the back this switch will have three rows of terminals with two terminals on each row. Use this guide when you want an on off on rocker switch to provide power to two loads when in the up position and only one of. Specialty wiring and instructional guide for.
